HOLO Air cooled function splice machine 1500mm

Fast Splicing and is Portable Splice Press, easy to bring to anywhere.

Specifications:

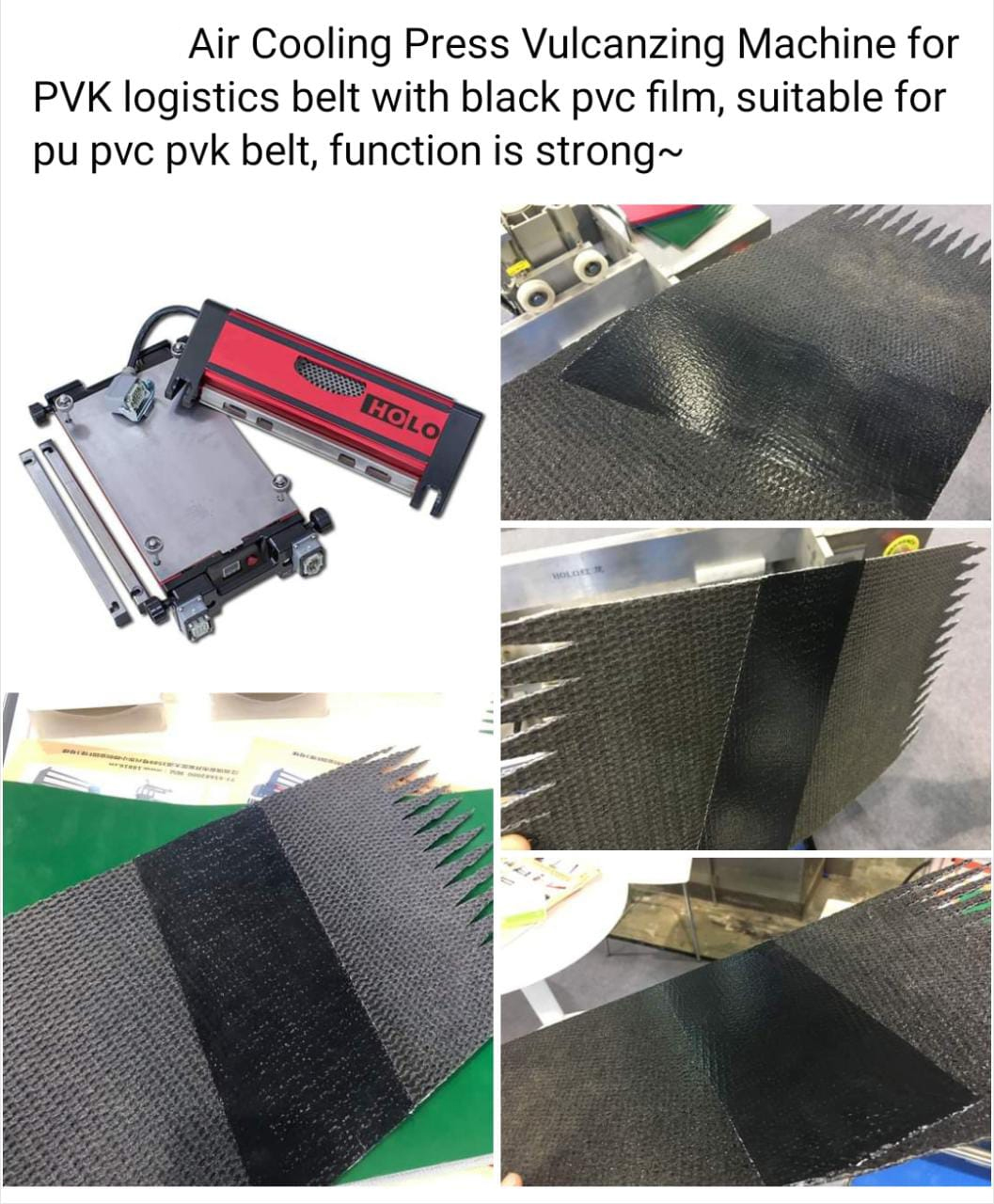

•Used for PVC/PU/PVK Belt and thermoplastic belt materials etc.

•Portable splice press, light weight and with flight case as standard packing, easily removed to anywhere for on-site joint work.

•Fast Splicing: heating and cooling time around 12mins.

•All-in-one design: Integrated air cooling system and also air compressor inside. To ensure that belt is quickly cooled down and auto press on, without water pump or additional air compressor. The air compressor made in Germany.

•Reliable and automatic temperature control with time controlling (in one meter, also you can sent by yourself). High quality Euro thermistor. The temperature controller from Eurothern, made in UK.

•Air pressure controller (set the air pressure and display the current pressure), high quality SMC Controller.

Product Description

Air cooling press 600mm is suitable for small belt width splice, Same good imported components and stable quality.

12mins fast splice saving your time and assistance you get more order from clients.

We has treadmill/PVC/PU/PKV splice document for reference.

We are keep moving on the machine effect, if you'd like know more, Please contact us

Features and Benefits:

1.Air Cooling

Use high quality axial fan from Chinese Taiwan with CE

Anodizing Surface no painting

2.Clamp Bar Studs&Thumbnuts

Fix tightly long belt in case of sliding

3.Completed Splicing Process Around 12 mins

Eurotherm controller from UK

SMC pressure controller from Japan

4.Electric Connect (500V)

From WAIN ELECTRICAL with CE

Simply plug it into electricity and it's ready for use

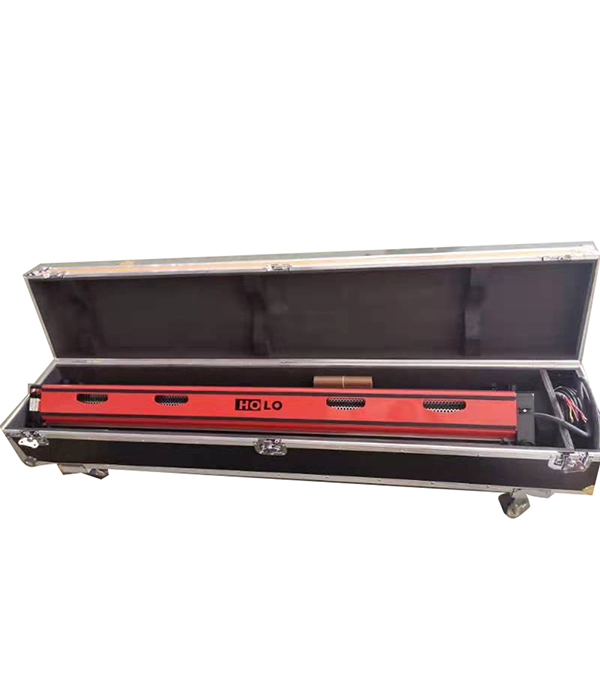

5.Flight Box with Wheels

It's easy to bring anywhere for belt splicing and on-site work

Accessories and options

Splice times very short around 12 minutes

All-in-one unit with no external components, better than water cooling type.

Two dwell levels of temperature for different conveyor belt

Light and easy to handle

Mass production since founded factory, more than 15 years experence in machine manufacture.
Keep machine instock for fast delivery.

Model	PA1500
Effective length	1500 mm
Effective width	130mm
Weight upper part	30 kg
Weight lower part	30 kg
Total weight	62 kg
Overall Height	225 mm
Width	250mm
Length	1705 mm
Max.Pressure	2 Bar
Max.Temperature	200 ˚C
Power	7 kW
Press+case weight	95kg
Press+case+wooden box weight	115kg
Wooden box size(LWH)	1720460660mm
Wooden box size(LWH)	1720460660mm
