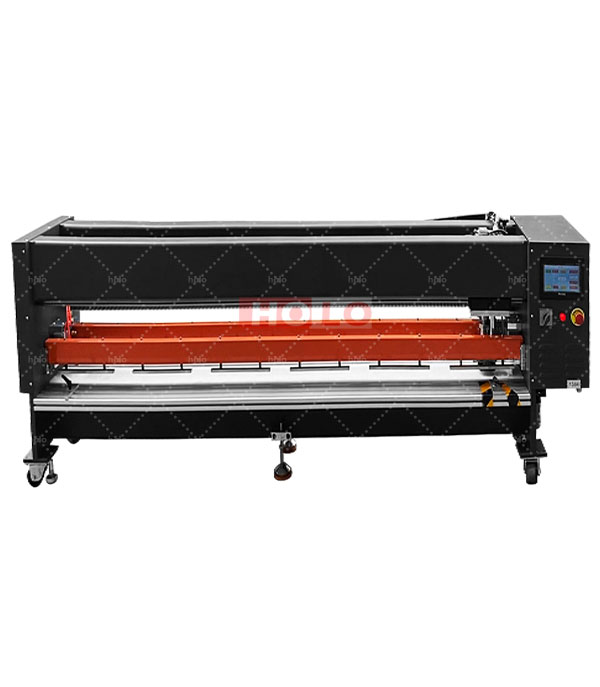

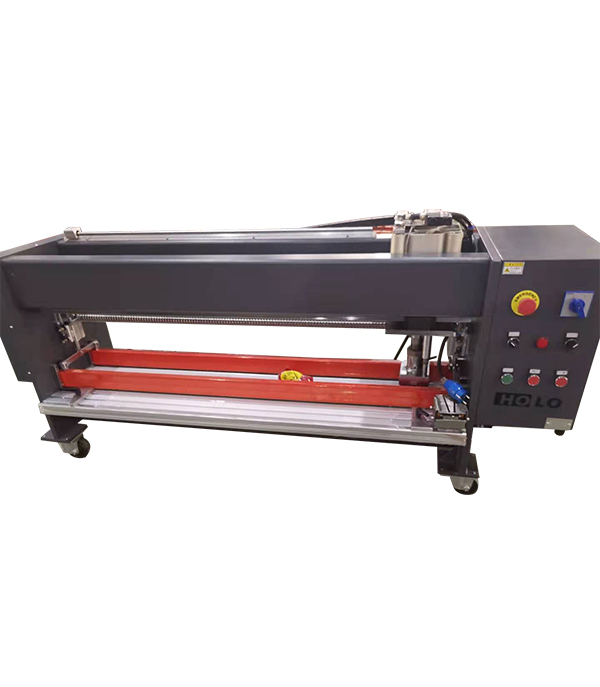

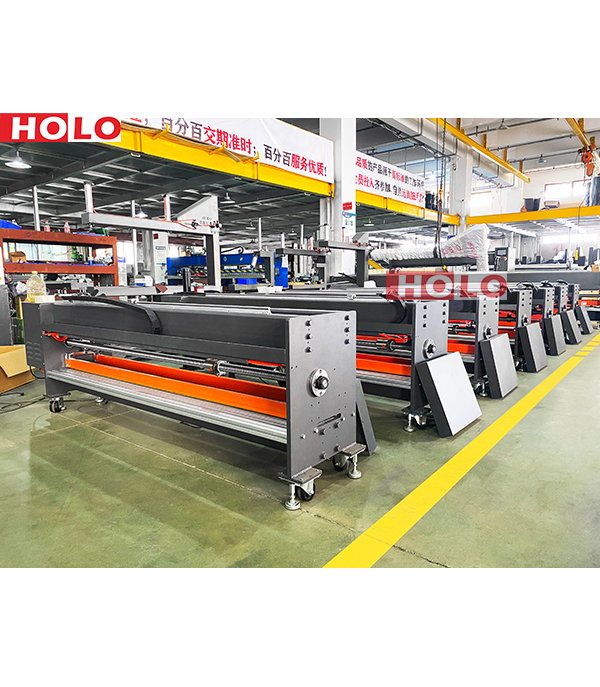

Product Description

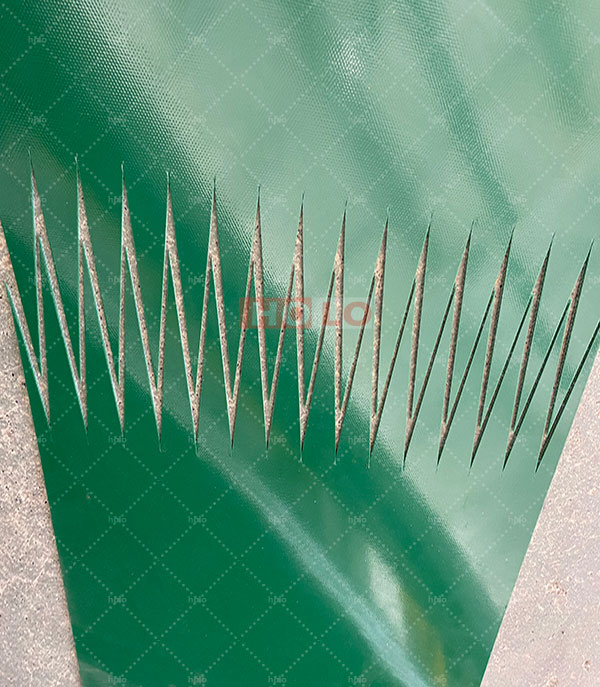

With standard finger sizes 10*80 and 20*80mm

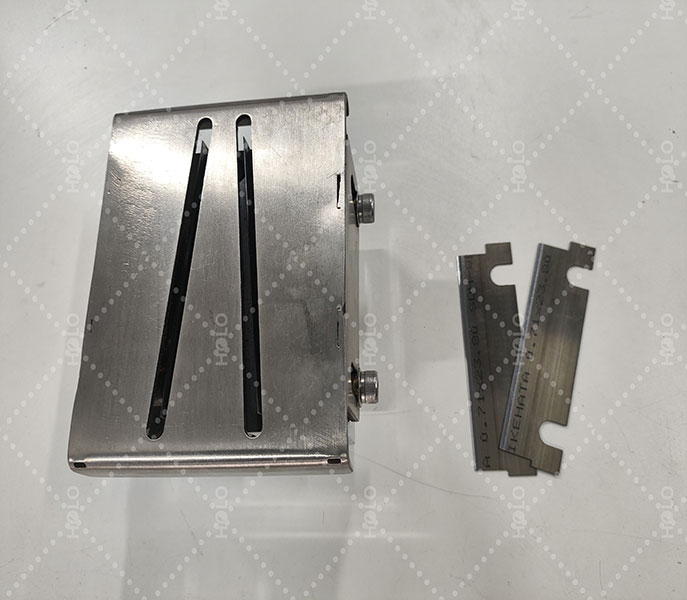

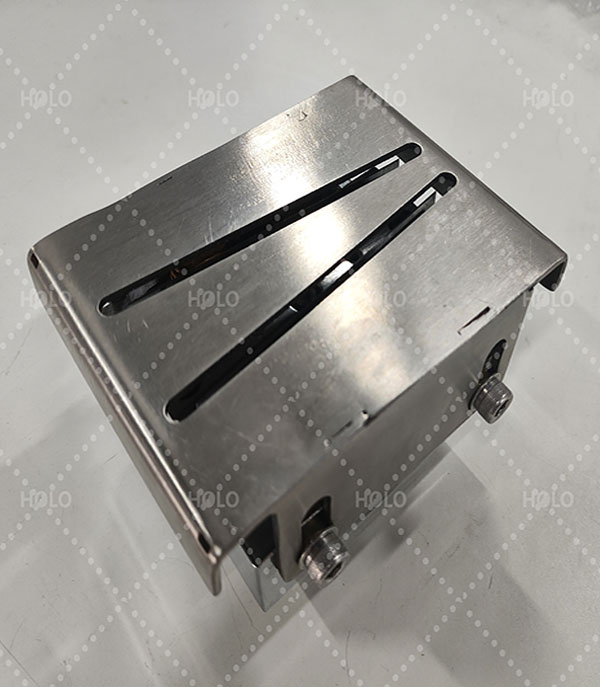

Angle-cut die fingers can be custom-made

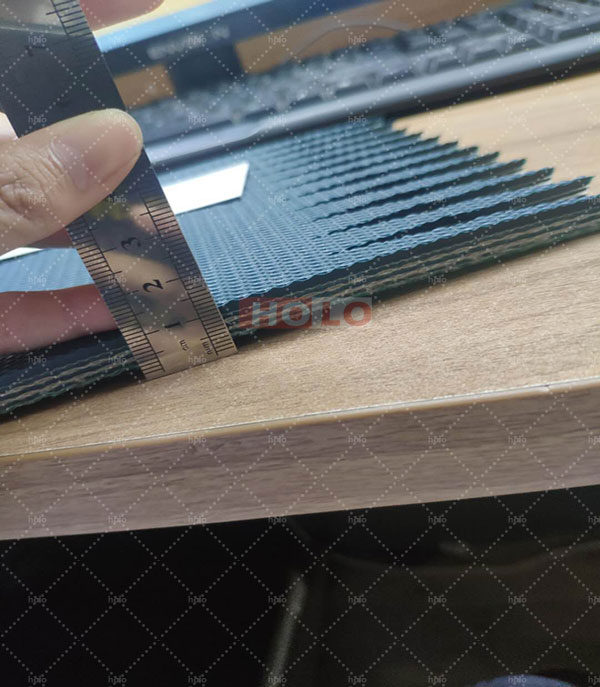

Maximum thickness is up to10mm for thermoplastic conveyor belt
Features and Benefits:

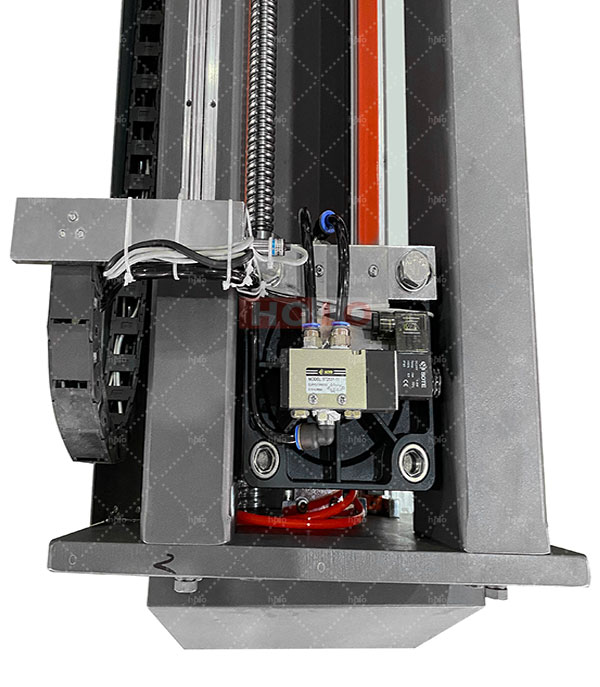

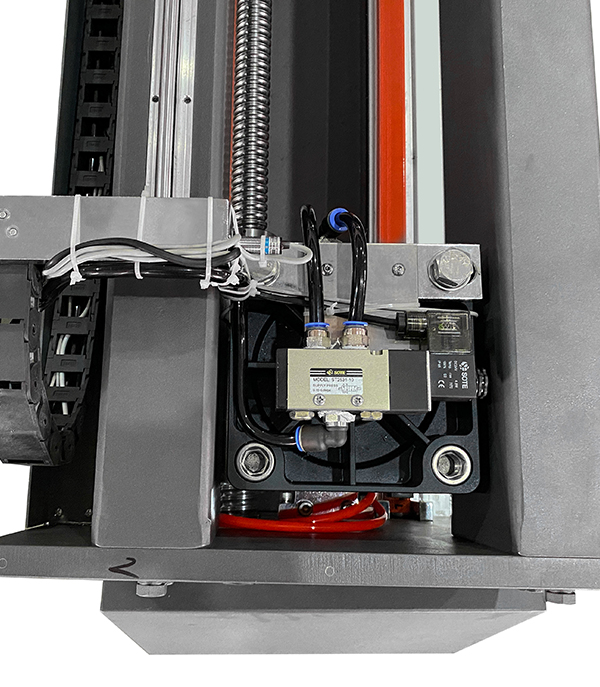

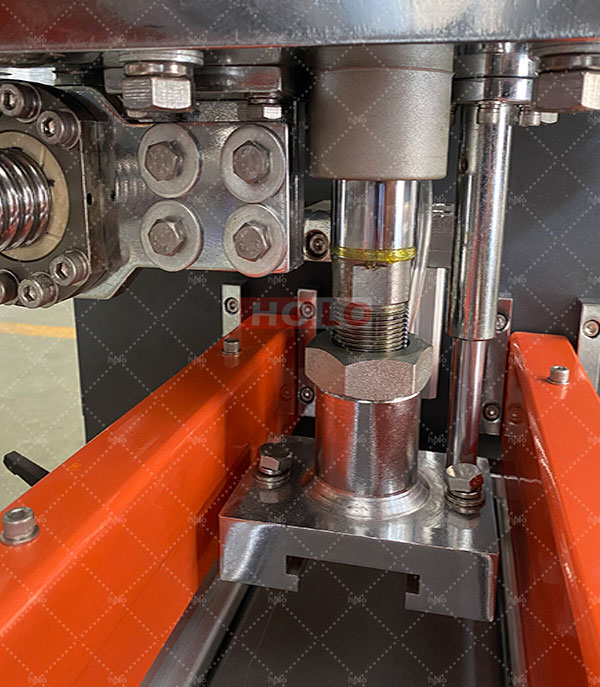

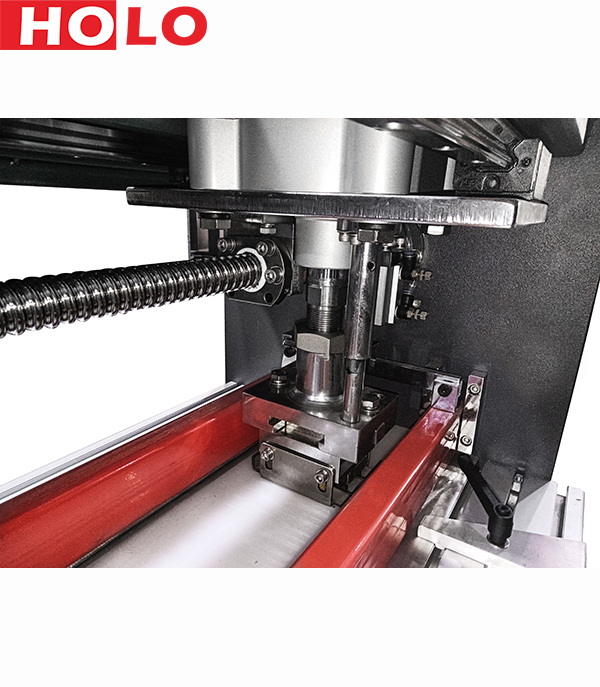

Die on the top operated by a hydraulic cylinder
The finger size changes easily by changing different dies fingers

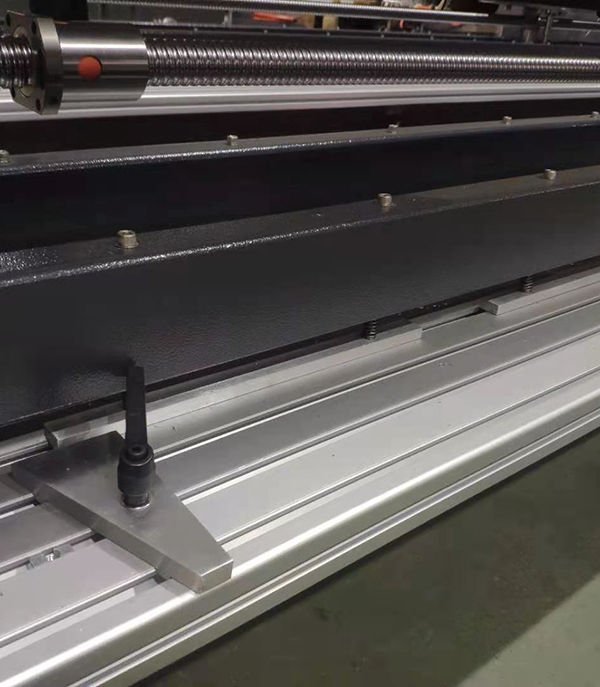

Easy operation, after clamping the belt, the machine runs automatically
With high precision, the finger after punching is more clean
Safety reduces manual work to avoid an accident because of wrong operation
Accessories and options

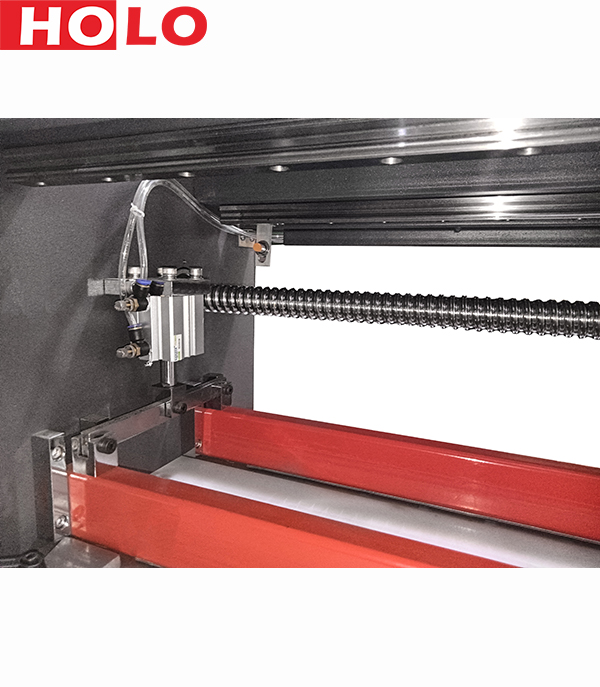

Automatic moving and Far infrared induction stop system

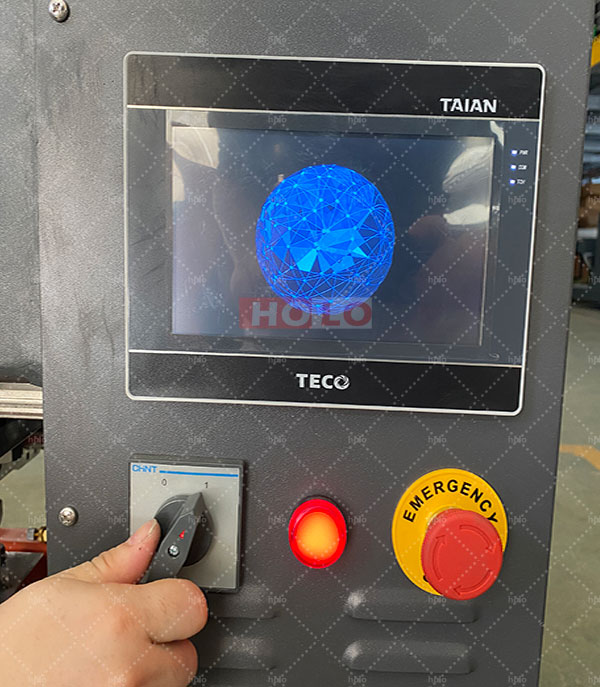

Screen and botton control
Humanized design can be operated on both sides. Reduce running back and forth, improve work efficiency
| TB1000 | TB1600 | TB2000 | TB3000 | |
| POWER | 0.75KW | 0.75KW | 0.75KW | 1KW |
| Voltage | 220V/1PH | 220V/1PH | 220V/1PH | 220V/1PH |
| Suitable belt | PU/PVC/FLAT BELT | PU/PVC/FLAT BELT | PU/PVC/FLAT BELT | PU/PVC/FLAT BELT |
| Max belt thickness | 10MM | 10MM | 10MM | 10MM |
| Effect width | 1050MM | 1650MM | 2050MM | 3050MM |
| Machine size（mm） | 1770*540*1110 | 2370*540*1110 | 2770*540*1110 | 3820*540*870 |
| Suggest pressure | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa |
| Connect pipe diameter | 14mm | 14mm | 14mm | 14mm |
| Standard finger size | Straight 10*80mm/Straight-20*80mm | |||
| Suggest air compressor | Air storage capacity120L air discharge 720L/MIN | |||
