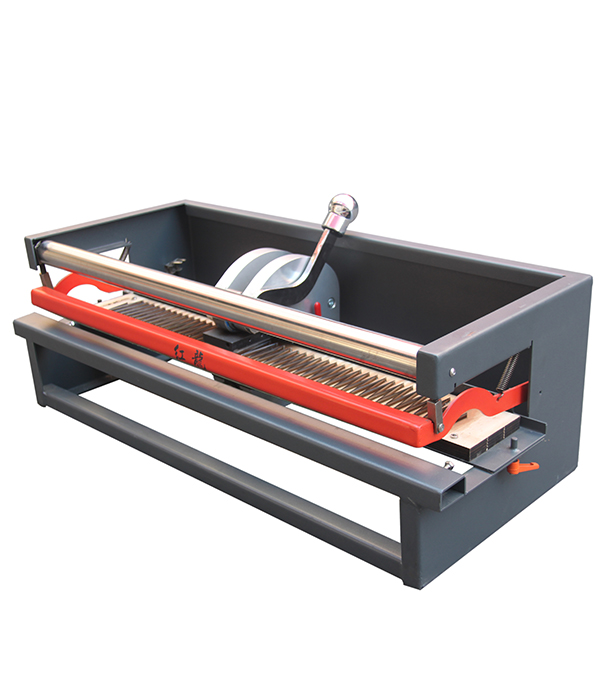

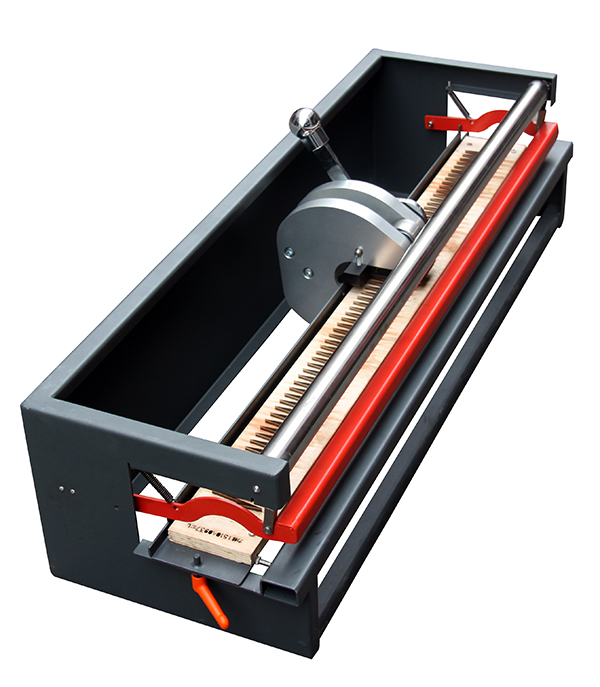

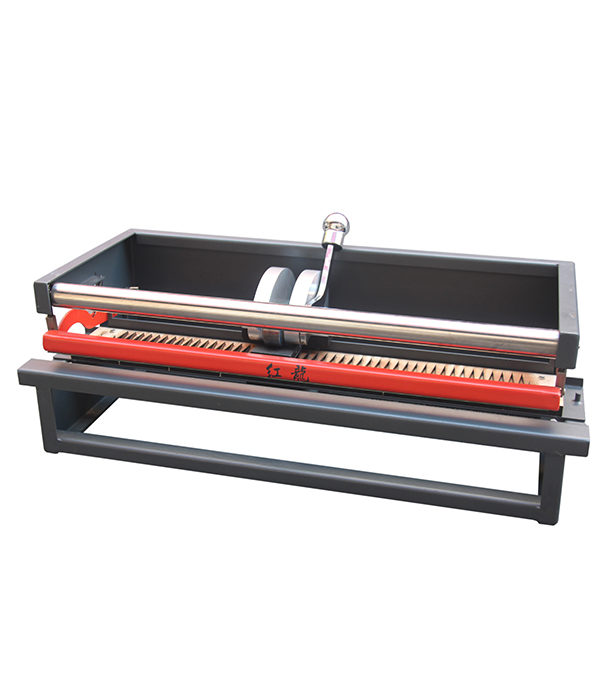

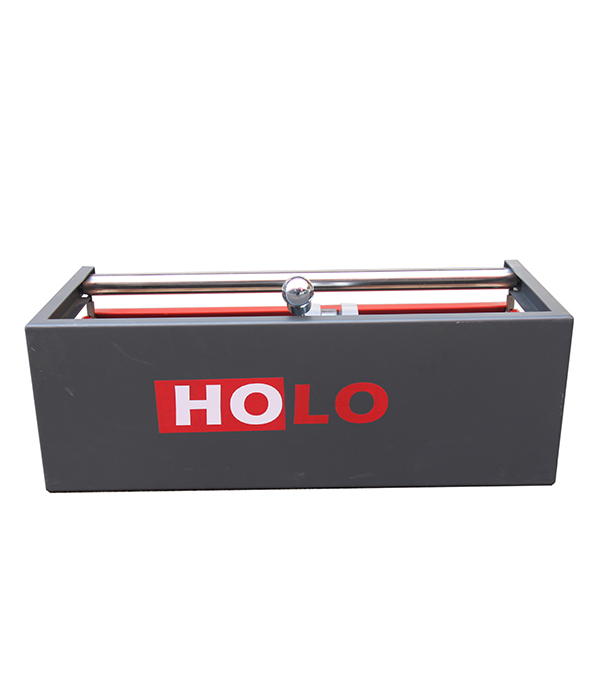

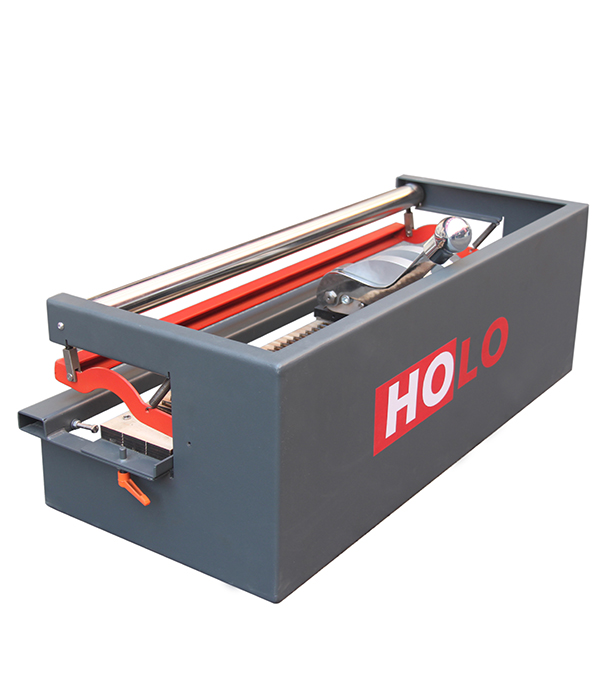

HOLO TC Conveyor belt Manual Finger Puncher

Product Description
Product Description

    Light weight and portable design, no need electric and air pressure


    Both side open design, no width limited

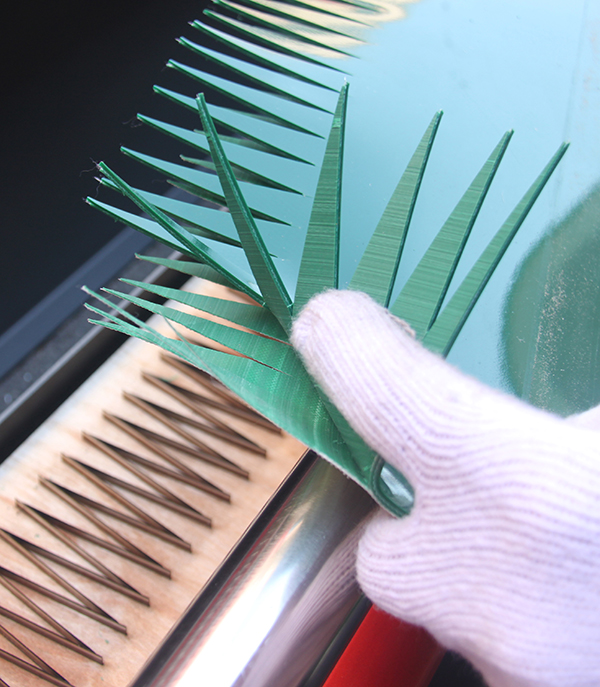

    Single finger splice & double fingers splice


    Standard blade 15*75mm or 20*50mm


    Maximum thickness is up to 4mm for lightweight conveyor belt

Features and Benefits
Features and Benefits

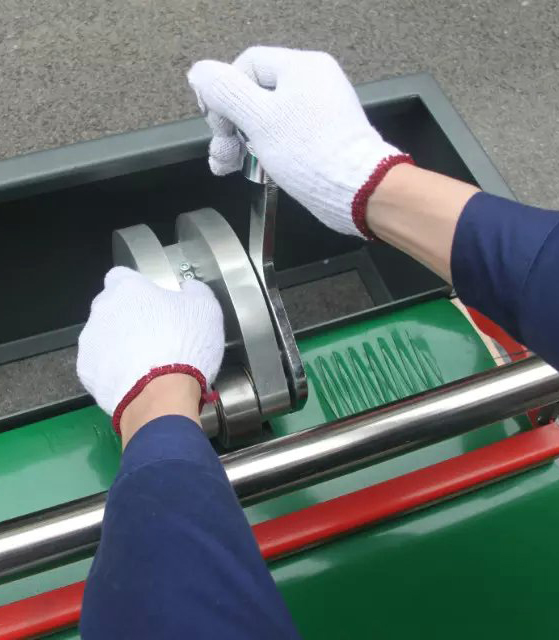

    Portable, manual and easy handling


    No electricity or pressure required

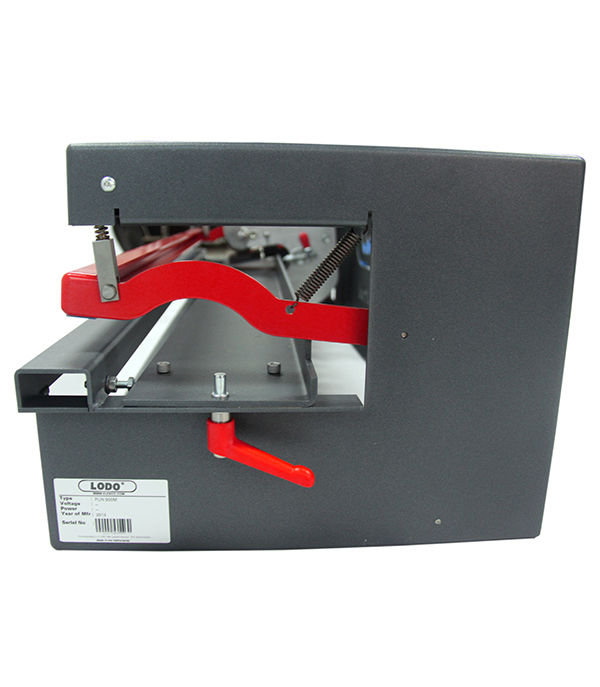

    Open ended for wider conveyor belts


    Single or Finger over finger punching

Accessories and options

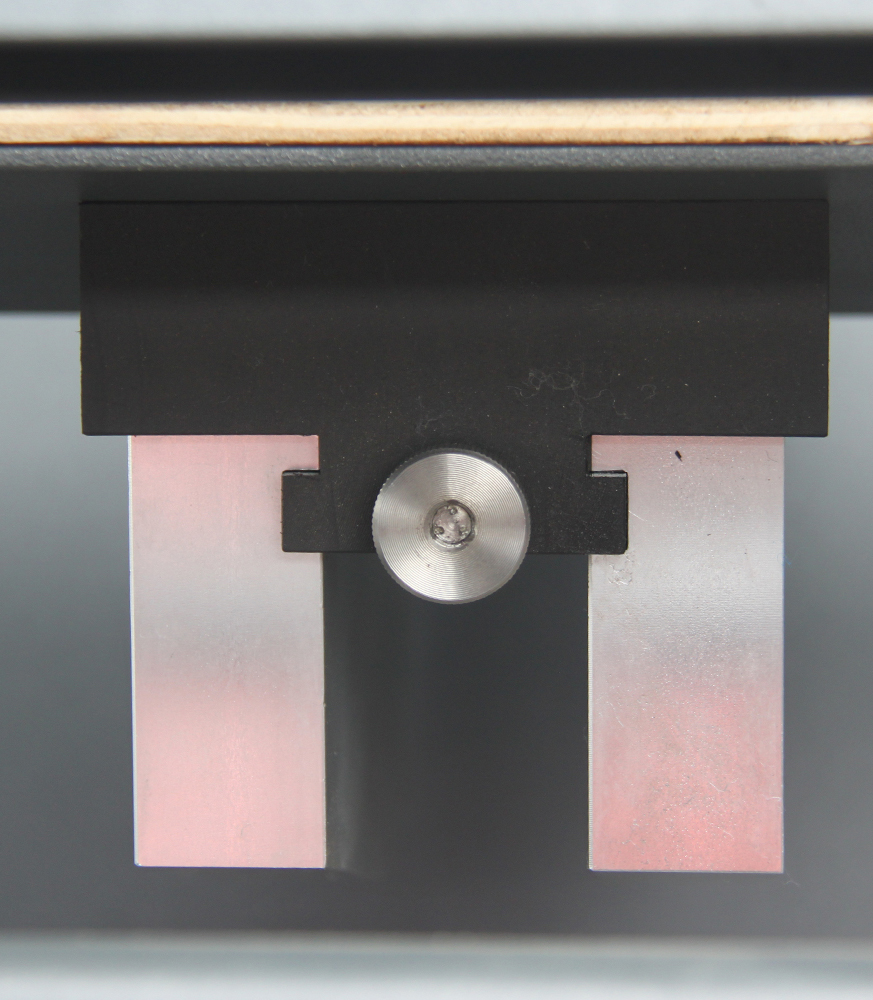

    Standard blade is 15*75mm for single finger or 20*50mm for finger over finger


    10*80mm, 20*80mm and other fingers can be custom-made


    Bias punching board can be custom-made


TC300TC600TC900TC1200TC1500
Machine Length530mm850mm1120mm1340mm1550mm
Width390mm390mm390mm390mm390mm
Height380mm380mm380mm380mm380mm
Weight19kg27kg39kg41kg51kg
Packing Weight(wooden case)35kg47kg59kg70kg90kg
Packing volumn(L*W*H)680*510*510mm960*510*510mm1260*510*480mm1550*510*480mm1870*510*180mm

 Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
